Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump

Anhui Fumai Machinery Manufacturing Co., Ltd.
Contact Now
    Buy cheap Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump from wholesalers

    Buy cheap Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump from wholesalers
    • Buy cheap Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump from wholesalers
    • Buy cheap Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump from wholesalers
    • Buy cheap Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump from wholesalers
    • Buy cheap Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump from wholesalers

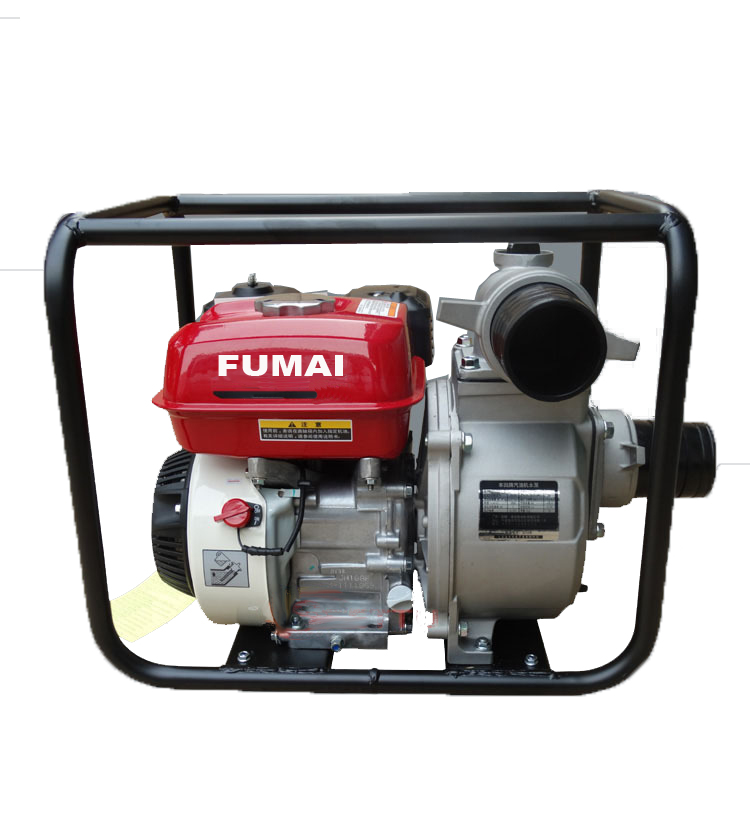

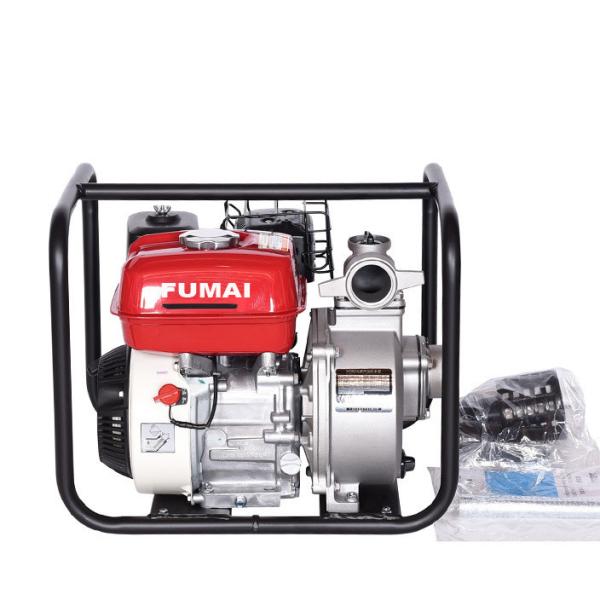

    Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump

    Ask Lasest Price
    Brand Name : FUMAI
    Model Number : fmwp800
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 20000
    Delivery Time : 10
    • Product Details
    • Company Profile

    Fumai 3inch open impeller single suction aluminum alloy Horizontal clean water pump


    Fumai open single suction aluminum alloy horizontal vortex pump clean water pump
    Water pump
    Product Description
    1,Powered by FUMAI’s strong 4-stroke engines
    2, Easy maintenance and wide application
    3, Full fram protection greatly reduces vibration
    4, Famous for sophisticated design and excellent performance
    5, Featured by easy starting, simple operation, low fuel consumption, a longer service life,low pollution, etc
    Features
    1,Economical Running
    Equipped with FUMAI engines, FUMAI pumps assure superior combustions efficiency and minimized fuel consumption.
    2,Portability
    Adopted special alloy frame, largely reduced the weight and assures simple use.
    3,A Wide Range
    Excellent and advanced impeller ensures water supply in a wide range.
    4,Durable Construction
    The principal parts of each pump are reinforced for superior wear resistance and corrosion resistance.
    5,Easy Maintenance
    Cleaning the inside casing can be done simply by just removing a few bolts.

    The gasoline engine water pump is a centrifugal pump composed of a water pump and a bracket. It has the advantages of low cost, light weight, convenient maintenance, and low manufacturing cost and low noise.

    The clear water pumps are used to provide continuous supply of water to industrial, commercial establishments, houses, hospitals, aquariums, and agriculture.


    Specifications
    Model FMWP800
    engine parameter
    Engine model 168FB
    Engine typeOHV25 single cylinder,Forced air cooling,4-stroke
    EnginePower kW/RPM3.5/3600
    Ignition systeminduction ignition
    Starting systemrecoil start
    Fuel tank capacity3.6L
    Oil capacity0.6L
    Water pump parameter:
    Intel Dia80mm(2inch)
    Output Dia80mm(2inch)
    Lift head15.8m
    Max.suction head5m
    Max.flow rate39.6m3 /h
    M.T mm520*395*420
    Self-priming time (s)≤150
    Cavitation allowance (m)4.0
    Net weight (kg)25±1
    G.W KG26
    MaterialAluminum Alloy Aluminum Alloy
    Drive modemanual
    UseIrrigation,extinguish a fire,Drainage
    Pump shaft positionhorizontal
    Impeller structureOpen impeller
    Number of impellersSingle stage
    Impeller suction methodSingle suction
    Principlevortex pump
    Performancenon-blocking
    Conveying mediumclean water pump



    Water pump maintenance instructions

    the running-in period is about 5-10 hours, you have to change the oil, otherwise the impurities in the oil tank in the running-in period will jam the crankshaft .
    Fill the four-stroke gasoline engine with gasoline above 90# and add lubricating oil to the tank. Please check the oil level before each use.
    When the gasoline engine is working continuously, the crankcase temperature should not exceed 90 degrees. When it is overheated, it should be shut down for 15-20 minutes and then continue to work. When adding gasoline, it must be cooled down.
    It is forbidden for gasoline engines to stop at high speeds, and the throttle should be lowered to the lowest speed before stopping.
    Use the correct type of engine oil, clean engine lubricating oil without impurities, and gasoline without impurities.
    The air filter element should be checked regularly and replaced regularly. The dirty filter element should be washed with soapy water and dried before use.
    The machine is like your car, and it needs frequent care and maintenance to extend its life.
